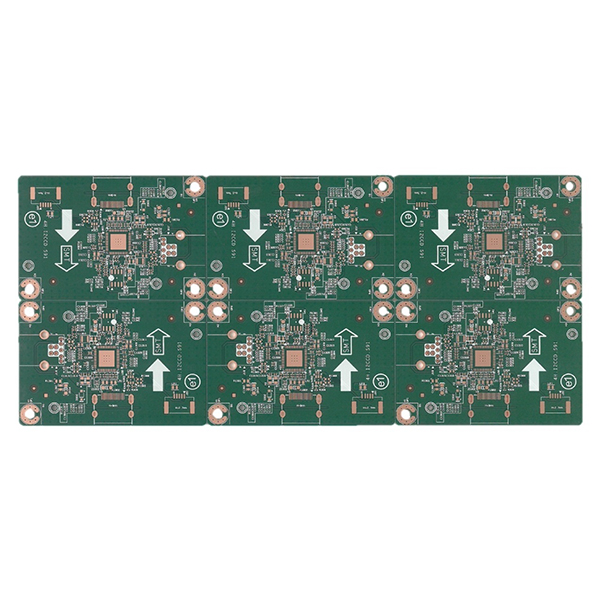

rapid prototype PCB fabrication for fast turnaround

Working Principle

Rapid Prototype PCB Fabrication relies on efficient production lines and automated equipment. After customers submit their circuit design files, the engineering team quickly completes design review, material preparation, multilayer lamination, drilling, etching, pad plating, silkscreen printing, and other processes. Each PCB prototype must undergo strict electrical performance testing and visual inspection to ensure that its structure and functions fully meet design requirements, enabling rapid delivery.

Main Advantages

• High-Speed Delivery: Prototyping can be completed in as little as 24 hours, greatly shortening the research and development cycle and accelerating time to market.
• Flexible Customization: Supports a variety of board materials, layers, sizes, and special processes to meet different development needs.
• Reliable Quality: The entire process is automated and inspected to ensure the function and quality consistency of every prototype board.
• Professional Support: The engineering team provides design optimization advice and technical consulting to improve research development efficiency.
• Cost-Effective: Small-batch prototyping requires low investment, effectively reducing development risks and trial-and-error costs.

Application Fields

Rapid Prototype PCB Fabrication is widely used in consumer electronics, smart wearables, automotive electronics, medical devices, industrial control, IoT, and other fields. Whether for new product design validation, functional testing, or small batch trial production, rapid prototype PCB fabrication is an essential safeguard for electronic products from concept to market, providing strong support for enterprise innovation and high-quality delivery.
